• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare (Standard on CG23406, CG33406, and CG33706 models only.)
• Tires, front LT245/75R16E all-season, blackwall (Standard on CG23406, CG33406 and CG33706 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on CG23406, CG33406 and CG33706 models.)
• Tire, spare LT245/75R16E all-season, blackwall (Standard on CG23406, CG33406 and CG33706 models.)
• Body, standard
• Bumpers, front and rear painted Black with step-pad (Deleted when (V37) front and rear chrome bumpers is ordered.)
• Grille, Black composite with single rectangular halogen headlamps
• Headlamps, halogen
• Mirrors, outside manual, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash (Standard on CG23406, CG33406, and CG33706 models with 12- and 15- passenger seating. Not available with 8-passenger seating.)
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out passenger-side, 60/40 split

• Audio system, AM/FM stereo with seek-and-scan, digital clock and 2 front door speakers

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests (Requires (**W) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with vinyl trim. Head restraints are not available on rear bench seats.)
• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration (Standard on CG23406, CG33406, and CG33706 models only.)
• Floor covering, full-length Black rubberized-vinyl
• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, single-zone manual
• Defogger, front and side windows
• Mirror, inside rearview manual day/night
• Headliner, cloth
• Visors, driver and front passenger, cloth, padded (Not available on CG33706 models. Not available with (TR9) auxiliary lighting or (C69) rear air conditioning or (DAA) driver and front passenger vinyl visors or (DH6) driver and front passenger visors padded with cloth trim.)
• Assist handle, front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes, Automatic Crash Response, Emergency Services, Crisis Assist, First Assist, Injury Severity Predictor, Stolen Vehicle Assistance, Stolen Vehicle Slowdown, Remote Ignition Block, Remote Door Unlock, Roadside Assistance, Remote Horn and Lights, Turn-by-Turn Navigation with OnStar eNav, OnStar Vehicle Diagnostics, Hands Free Calling and available OnStar RemoteLink mobile app (Visit onstar.com for details and system limitations.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Tire Pressure Monitoring System (does not apply to spare tires)

LS PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

REMOTE KEYLESS ENTRY

• with 2 transmitters and remote panic button

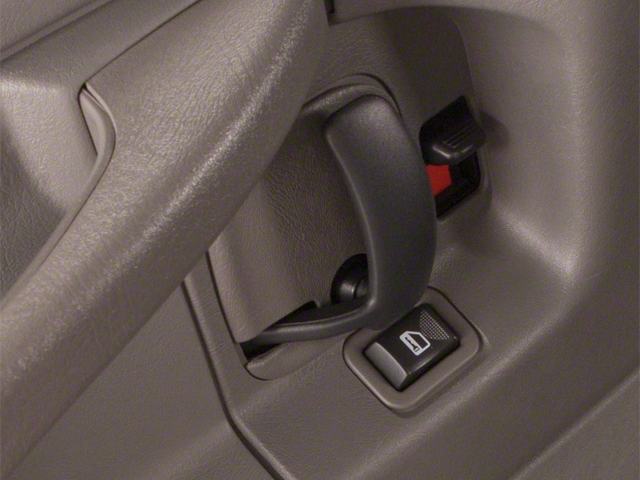

DOOR LOCKS, POWER

• with lock-out protection

FLOOR COVERING, FULL-FLOOR COLOR-KEYED CARPETING

• with front and rear rubberized vinyl floor mats

VISORS, DRIVER AND FRONT PASSENGER, PADDED WITH CLOTH TRIM

• and dual vanity mirrors
• illuminated on passenger-side

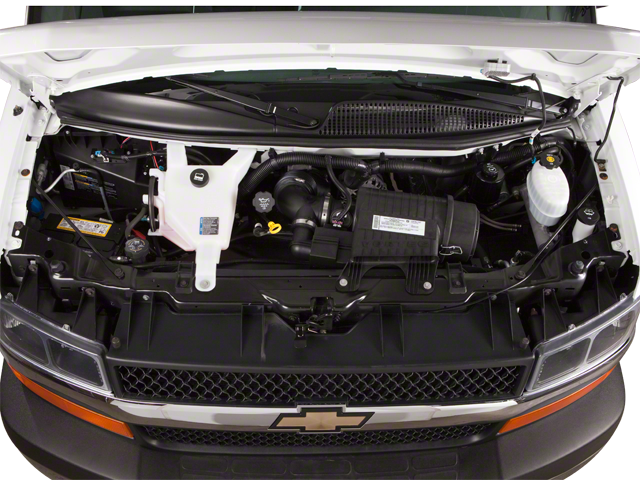

ENGINE, VORTEC 6.0L V8 SFI FLEXFUEL

• (324 hp [241.6 kW] @ 4700 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) Includes external engine oil cooler.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode and internal transmission oil cooler (STD) Includes external engine oil cooler.

LIGHTING, AUXILIARY

• with reading and underhood lights

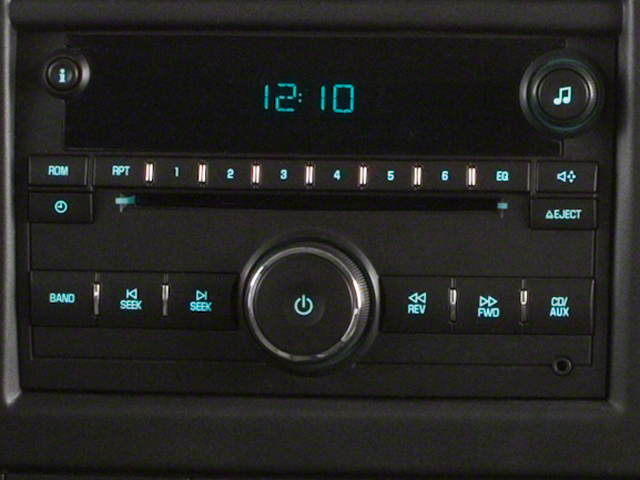

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select and 2 front door speakers

COMPASS, 8-POINT DIGITAL

• located in the Driver Information Center

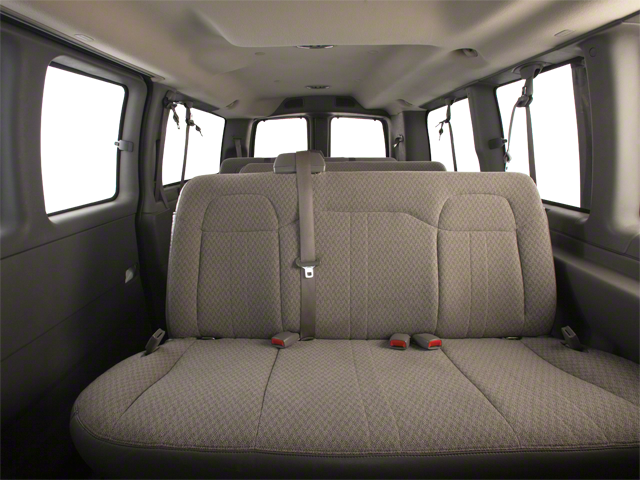

SEATING, 12-PASSENGER, (2-3-3-4 SEATING CONFIGURATION)

• 4-passenger seat is a 50/50 split
• 2-piece configuration (STD)

PAINT, SOLID

• (STD)

• SUMMIT WHITE

  MEDIUM PEWTER

• CUSTOM CLOTH

  HEATER

• REAR AUXILIARY

  AIR CONDITIONING

• REAR

  EMISSIONS

• FEDERAL REQUIREMENTS

  DIFFERENTIAL

• HEAVY-DUTY LOCKING REAR

  REAR AXLE

• 3.42 RATIO

  CRUISE CONTROL

  ALTERNATOR

• 145 AMPS

  DOOR

• SLIDING PASSENGER-SIDE

  CONVENIENCE PACKAGE

• TILT-WHEEL AND (K34) CRUISE CONTROL

• Vehicle
• Rear Door Type: Panel
• Mileage
• Fuel Economy Est-Combined (MPG): 13
• EPA Fuel Economy Est - City (MPG): 11
• EPA Fuel Economy Est - Hwy (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 3113
• Curb Weight - Rear (lbs): 2760
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1470
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1005
• Maximum Trailering Capacity (lbs): 9800
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.4
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2060
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 81.5
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.4
• Ground to Top of Load Floor (in): 27.8
• Ground Clearance, Front (in): 11.0
• Ground Clearance, Rear (in): 7.1
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 19.4
• Step Up Height - Side (in): 19.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 126.2
• Cargo Area Length @ Floor to Seat 2 (in): 89.1
• Cargo Area Length @ Floor to Seat 3 (in): 57.1
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.4
• Cargo Box (Area) Height (in): 51.8
• Cargo Volume to Seat 1 (ft³): 216.2
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): 92.1
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 39.8
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Second Head Room (in): 38.4
• Second Leg Room (in): 36.3
• Second Shoulder Room (in): 68.6
• Second Hip Room (in): 65.6
• Third Head Room (in): 38.5
• Third Leg Room (in): 36.6
• Third Shoulder Room (in): 65.8
• Third Hip Room (in): 63.3
• Fourth Head Room (in): 37.6
• Fourth Leg Room (in): 36.6
• Fourth Shoulder Room (in): 69.1
• Fourth Hip Room (in): 65.7
• Summary
• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 1 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 14.1
